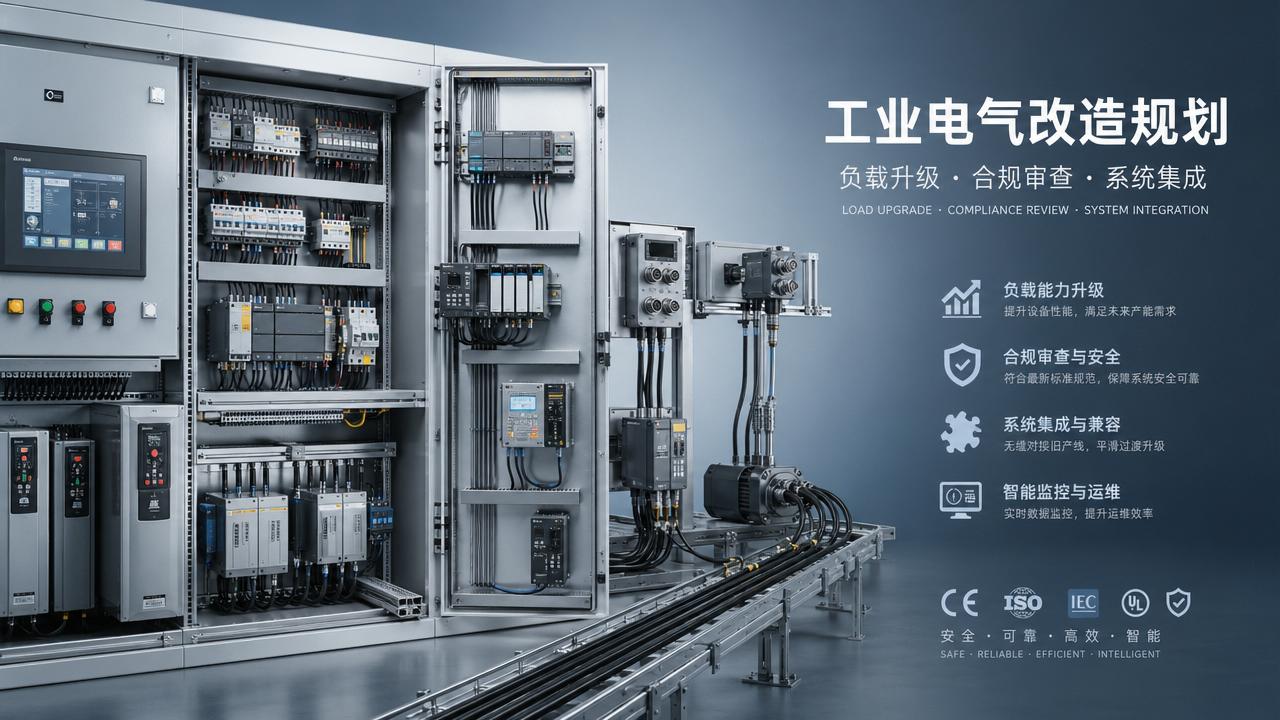

Electrical engineering changes that affect retrofit planning

Retrofit projects often fail not because of installation issues, but because critical electrical engineering changes are overlooked during early planning. From updated compliance standards and load requirements to automation integration and energy efficiency goals, these shifts can reshape budgets, timelines, and system compatibility. For project leaders, understanding them early is essential to reducing risk and making smarter retrofit decisions.

Why electrical engineering changes can derail retrofit planning

In retrofit work, electrical engineering is rarely limited to replacing cables, switchgear, or control panels. It affects power quality, system coordination, safety architecture, downtime windows, procurement sequencing, and future scalability. For project managers and engineering leads, the challenge is that a seemingly small design change can trigger a chain reaction across mechanical interfaces, automation logic, compliance review, and supplier lead times.

This is especially true in mixed industrial environments where legacy machines, newer PLC-based lines, pneumatic controls, tooling stations, and energy monitoring systems must coexist. A retrofit that starts as a panel upgrade may quickly become a broader electrical engineering review involving load reassessment, earthing updates, cable route limitations, and verification of protection settings.

• Legacy documentation is often incomplete, making it difficult to confirm original cable sizing, fault levels, and spare capacity.
• Standards and compliance expectations may have changed since the original installation, requiring extra design and inspection steps.
• Production teams may expect minimal downtime, forcing electrical engineering decisions to be made under tight scheduling pressure.
• Automation integration can introduce new control voltages, communication protocols, and sensor loads not considered in the old design.

What changes are most commonly missed?

The most overlooked electrical engineering changes are not always dramatic. In practice, they are often incremental: a higher motor starting current, a new VFD generating harmonics, a revised short-circuit rating requirement, or additional I/O that pushes a control cabinet beyond its thermal envelope. Each of these can affect component selection, enclosure design, or inspection scope.

Which electrical engineering updates should be checked first?

For retrofit planning, early screening should focus on the changes most likely to alter scope, cost, and approval timing. The table below helps project leaders identify where electrical engineering review should begin before detailed procurement or shutdown planning starts.

The key takeaway is that electrical engineering changes should be screened by system effect, not by component count. A single new drive or a modified busbar section may have more planning impact than dozens of replaced field devices.

A practical first-review checklist

1. Confirm current single-line diagrams against field reality before freezing retrofit scope.
2. Recalculate load growth, diversity assumptions, and spare capacity at panel and feeder level.
3. Review protective device coordination if any upstream or downstream equipment changes.
4. Check enclosure heat dissipation and cable routing when adding controls, drives, or communication hardware.
5. Map all standards, inspection, and customer documentation requirements before purchase orders are issued.

How updated standards and compliance rules affect retrofit decisions

Many retrofit budgets are built on hardware replacement assumptions, yet the real cost increase comes from compliance upgrades. Electrical engineering today is shaped by broader expectations around personnel safety, energy performance, machine guarding interfaces, traceable documentation, and maintainability. Even when an existing installation has been operating for years, a retrofit can trigger review against current codes, insurer rules, or customer specifications.

In industrial settings, common checkpoints include low-voltage installation rules, grounding and bonding practices, short-circuit withstand capability, lockout provisions, emergency stop integration, and panel labeling. Where export machinery or multinational plant standards are involved, project leaders may also need to align with IEC-based design methods, local regulations, or buyer-specific acceptance protocols.

Compliance areas that often expand project scope

• Arc flash and protection review when fault currents or switching arrangements change.
• Panel construction and temperature rise concerns when additional devices are installed in limited space.
• Machine safety interaction between electrical controls, pneumatic logic, and mechanical tooling.
• Documentation packages such as schematics, terminal plans, cable schedules, and maintenance instructions.

For project managers, the main lesson is simple: compliance review should not wait until factory acceptance or installation. It belongs in the planning stage, where design alternatives are still open and lead times are not yet locked.

Load growth, power quality, and automation integration: where electrical engineering becomes complex

Retrofits increasingly combine power upgrades with digital control. That raises the complexity of electrical engineering because the project is no longer only about supplying power; it is also about maintaining stable operation under variable loads, high-speed switching, and networked control devices. The result is a broader technical planning envelope that touches harmonics, EMC behavior, motor control strategy, and communication reliability.

In older plants, this complexity is amplified by limited physical space, mixed grounding quality, and unverified spare conductors. An automation upgrade may appear straightforward on drawings, but in the field it can reveal panel congestion, incompatible signal levels, aging terminals, or route conflicts with hydraulic and pneumatic systems.

The comparison below shows how common retrofit choices create different electrical engineering consequences. It is useful when project teams must balance cost, disruption, and long-term functionality.

There is no universal best option. The right answer depends on how much future expansion, maintenance simplicity, and risk containment matter for the specific facility. Good electrical engineering planning turns these trade-offs into explicit decisions instead of late-stage surprises.

Signals that a deeper technical review is needed

• The retrofit adds multiple VFDs, servo axes, or high-cycle solenoid control points.
• The plant has a history of nuisance trips, voltage dips, or unexplained equipment resets.
• The project must combine old machine tools with new safety or data-collection functions.
• Production wants a phased installation without full plant shutdown.

What project managers should ask before approving procurement

Procurement mistakes in retrofit projects usually begin with incomplete technical assumptions. When electrical engineering inputs are vague, buyers may compare quotations that are not technically equivalent. One vendor may include coordination study updates, cable accessories, labeling, and testing support, while another may quote only core hardware. The result looks like a price gap, but it is actually a scope gap.

Critical procurement questions

1. Has the quoted equipment been checked against actual fault level, ambient conditions, and enclosure constraints?
2. Are accessory items included, such as terminals, gland plates, interlocks, labeling, and cable management hardware?
3. Does the scope include drawing revisions, I/O schedules, testing procedures, and commissioning support?
4. What are the long-lead components, and is there a qualified substitute path if availability changes?
5. Will the selected products align with the plant’s maintenance practice and spare-parts strategy?

This is where a technical information platform like GHTN creates practical value. Because retrofit decisions often span electrical hubs, mechanical tooling interfaces, component durability, and automation logic, project teams need more than catalog data. They need cross-disciplinary insight that connects component behavior to field conditions, sourcing realities, and long-term maintainability.

Cost, alternatives, and phased retrofit strategies

Budget pressure does not always mean choosing the cheapest hardware. In electrical engineering for retrofit planning, cost control depends on knowing where phased implementation is acceptable and where partial measures create expensive rework later. For example, reusing a sound cable route may be sensible; reusing under-rated protection just to avoid shutdown is usually not.

A balanced strategy often combines immediate risk reduction with planned scalability. Instead of replacing every board at once, a project may prioritize the sections with the greatest compliance exposure, overload risk, or spare-part obsolescence. The rest can follow in later shutdown windows if interfaces are engineered properly from the start.

Where phased retrofits work well

• Control system migration where old and new PLC sections can run through defined gateways during transition.
• Distribution renewal where segregated feeders allow replacement by area or process island.
• Energy monitoring deployment that can begin with major loads before full metering coverage is added.

Where phased retrofits are risky

• Protection systems that depend on coordinated upstream and downstream settings.
• Panels already operating near thermal or physical limits.
• Critical process lines where temporary interfaces would increase failure points during production.

Common misconceptions about electrical engineering in retrofit projects

“If the old system ran for years, it is still suitable.”

Past operation does not automatically prove current suitability. Loads change, environments change, and expectations change. A system that once served fixed-speed motors may not respond well to modern drives, sensor networks, or data acquisition devices. Electrical engineering must be reassessed in the context of the new operating profile.

“A panel upgrade is separate from mechanical or tooling changes.”

In real factories, the boundaries are blurred. Electrical modifications affect actuator timing, tooling cycle control, pneumatic valve logic, machine safety behavior, and maintenance access. This is why multidisciplinary review matters, especially in facilities using integrated tooling, molds, or automated handling.

“The lowest equipment quote will reduce project cost.”

Not if it excludes engineering revisions, compatibility checks, or commissioning work. The cheapest line item can become the most expensive decision when delays, redesign, or site rework are added. Sound electrical engineering procurement evaluates total installed outcome, not just component price.

FAQ: practical electrical engineering questions from retrofit teams

How early should electrical engineering review start in a retrofit project?

It should begin before final budgeting and certainly before major equipment orders are placed. Early review helps identify hidden scope in distribution capacity, protection, panel layout, and compliance documentation. Waiting until detailed design or shutdown week usually increases both cost and schedule pressure.

Which retrofit scenarios most often need a load study?

A load study is strongly advised when adding motors, heaters, compressors, VFDs, servo systems, or dense control cabinets. It is also important when the plant already experiences trip events, voltage instability, or uncertain spare capacity. In these cases, electrical engineering decisions based only on old drawings are risky.

How do I compare supplier quotations more accurately?

Use a scope matrix. Check whether each offer includes engineering review, compliance documents, accessory hardware, FAT or site testing support, and lead-time assumptions. Without this breakdown, price comparisons can hide major differences in what will actually be delivered.

What are the biggest risks when integrating automation into legacy electrical systems?

The biggest risks are undocumented wiring, signal incompatibility, insufficient panel cooling, grounding weaknesses, and unclear machine safety interfaces. These are common electrical engineering problems in retrofit work because the original installation was not designed for today’s control density and communication requirements.
