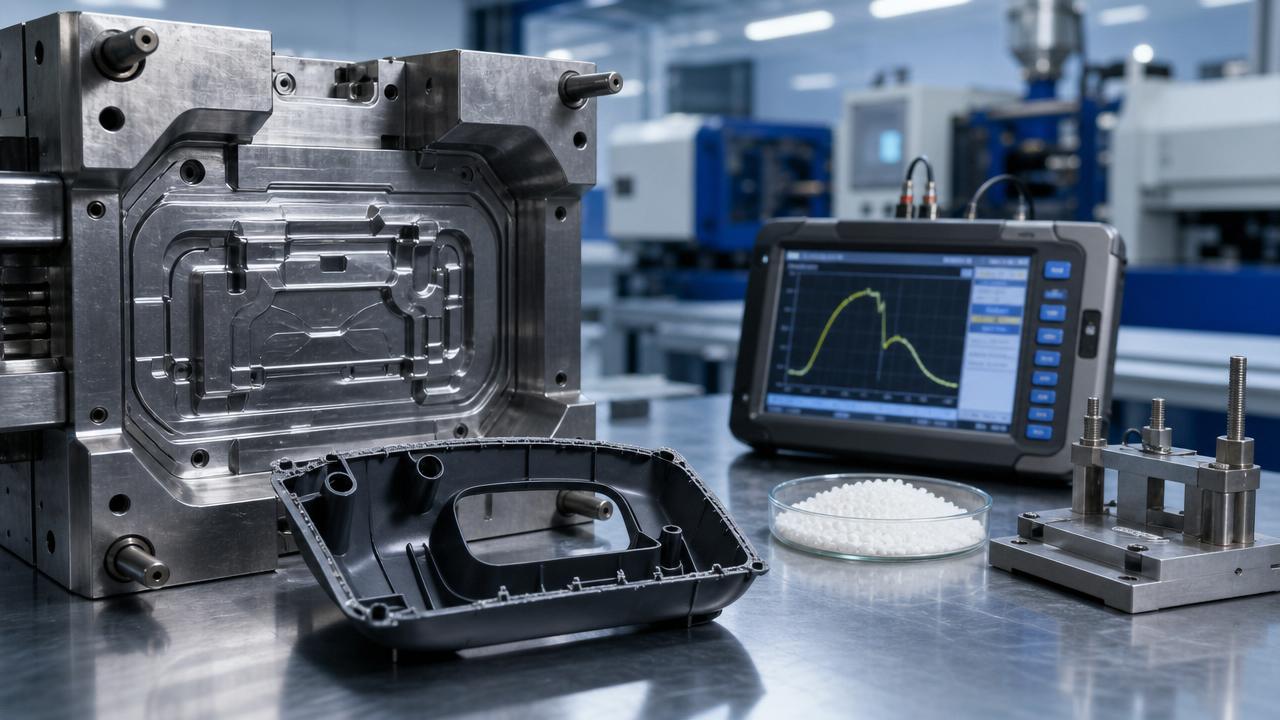

Injection Molding Problems That Technical Analysis Can Catch

Injection molding technical analysis is valuable because it helps manufacturers and buyers identify defects before they turn into scrap, delays, tool rework, or customer complaints. For information researchers evaluating suppliers, processes, or manufacturing risk, the key question is not simply what can go wrong in injection molding, but what a disciplined technical review can detect early, how reliably it can trace root causes, and what that means for cost, quality, and delivery performance.

In practice, many molding problems do not start as obvious visible defects. They begin as subtle process instability, uneven filling, thermal imbalance, material degradation, venting weakness, or mold wear. A proper technical analysis connects part geometry, resin behavior, mold construction, machine capability, and production data. That is why it can catch problems that routine visual inspection often misses.

This article explains the core search intent behind injection molding technical analysis from a practical industry perspective. It focuses on the defects and risks technical analysis can catch, the data and indicators used to diagnose them, and the signals researchers or sourcing teams can use when assessing a molding partner.

Why Technical Analysis Matters More Than Visual Inspection Alone

Visual inspection can confirm that a defect exists, but it rarely explains why it happened. A sink mark may be caused by insufficient packing pressure, poor gate location, thick wall sections, resin shrinkage characteristics, or inadequate cooling. Flash may come from excessive injection pressure, mold mismatch, worn shutoffs, trapped gas, or clamp force issues. Without technical analysis, teams often treat symptoms instead of causes.

That distinction matters to OEMs, buyers, and technical researchers because recurring molding defects are not only quality issues. They are signals of process capability risk. A supplier that can make acceptable parts during sampling but cannot maintain a stable process in mass production may still expose customers to hidden costs later.

Technical analysis adds value by turning isolated defects into process knowledge. It asks structured questions: Is the part failing because of design-for-manufacturing limitations? Is the mold balanced? Is the resin drying specification being met? Is the machine sized correctly for shot volume and pressure demand? Is the process window wide enough for repeatable production? These are the questions that determine whether a molding line is robust or fragile.

Common Injection Molding Problems Technical Analysis Can Catch Early

The most useful benefit of injection molding technical analysis is early detection. Many defects can be predicted or diagnosed before full-scale production if engineers review mold flow behavior, cooling performance, pressure curves, dimensional data, and machine-process consistency.

Warpage and Dimensional Distortion

Warpage is one of the most commercially damaging molding problems because parts may pass initial visual checks but fail assembly, sealing, or downstream fit. Technical analysis can identify warpage risks by studying non-uniform shrinkage, gate placement, cooling channel effectiveness, fiber orientation in filled resins, and differential wall thickness.

For information-focused readers, the important point is that warpage is usually not random. It often reflects imbalanced thermal and flow conditions. Mold flow simulation, cavity pressure tracking, and post-molding dimensional mapping can reveal whether the problem originates in part design, tool design, or process settings.

Sink Marks and Internal Voids

Sink marks are visible depressions, while internal voids may remain hidden until the part is cut open, tested, or fails in use. Technical analysis catches both by comparing wall geometry, gate freeze timing, holding pressure profile, cooling rate, and material shrinkage behavior.

If a supplier only adjusts cycle time or cosmetic settings without addressing wall transitions or packing effectiveness, the issue may persist. For structural or appearance-sensitive parts, that is a red flag. Proper analysis distinguishes between cosmetic correction and actual process correction.

Flash

Flash may look simple, but repeated flash often indicates a deeper problem in mold condition or process control. Technical analysis can detect whether the root cause is excessive injection pressure, inadequate clamping force, worn parting lines, poor vent design, or local mold deflection.

This matters commercially because flash is frequently associated with inconsistent setup discipline. A factory that relies on operator compensation rather than process optimization may keep parts moving temporarily, but long-term repeatability often suffers.

Short Shots and Incomplete Filling

Short shots happen when the cavity does not fill completely. The direct symptoms are obvious, but technical analysis reveals whether the root issue is insufficient venting, poor flow path design, low melt temperature, inadequate injection speed, undersized gates, material contamination, or machine limitations.

In complex geometries, short shots can also indicate narrow process margins. A part that only fills at aggressive settings may be vulnerable to variation during normal production. That is exactly the kind of hidden risk that technical analysis is meant to surface.

Burn Marks, Gas Traps, and Venting Failures

Burn marks often point to trapped gas and poor venting rather than simply excessive temperature. Technical analysis reviews end-of-fill locations, vent placement, injection velocity, gate design, and mold sealing conditions. It can also identify whether the issue is linked to degraded resin or unstable residence time in the barrel.

These problems are especially relevant in thin-wall, cosmetic, or multi-cavity parts where airflow behavior becomes more critical. A technically mature molder will not just polish away surface evidence; they will address the gas evacuation mechanism itself.

Weld Lines and Weak Structural Zones

Weld lines form where melt fronts meet, but their severity depends on local temperature, pressure, material type, reinforcement content, and geometry. Technical analysis can predict where weld lines will form and evaluate whether they are cosmetic only or a true structural concern.

For buyers of functional plastic components, this is crucial. A visible weld line is not always a failure, but a weld line located at a high-load feature, snap fit, or sealing edge may reduce part performance significantly. Good analysis ties defect location to functional risk.

Splay, Silver Streaks, and Material Degradation

Splay is commonly linked to moisture, volatile contamination, or resin degradation. Technical analysis checks resin handling, drying records, regrind ratios, barrel temperature profile, screw design, and residence time. This is where process discipline and material management intersect.

For technical researchers comparing molding partners, the presence of recurring splay may indicate weak control over raw material preparation. It is often less about one bad lot of resin and more about whether the operation consistently follows material-specific requirements.

How Technical Analysis Traces Root Causes Across the Full Molding System

The strongest technical reviews do not isolate defects from the wider system. Injection molding is an interaction among four variables: part design, material, mold, and machine process. Problems are usually generated by combinations of these factors, not by one setting alone.

Part design analysis examines wall thickness consistency, rib-to-wall ratios, boss structure, draft, gate feasibility, and stress concentration zones. Even a high-quality mold cannot fully compensate for a geometry that encourages uneven filling or shrinkage.

Material analysis focuses on flow behavior, shrink rate, thermal sensitivity, moisture uptake, filler content, and batch consistency. Different polymers respond very differently under the same nominal settings. Technical analysis checks whether the chosen resin actually matches the part’s geometry and end-use demand.

Mold analysis reviews gate type and location, runner balance, venting, cooling layout, steel quality, shutoff surfaces, ejection strategy, and wear-prone details. Many chronic defects originate in tool design choices that later get mistaken for process problems.

Machine and process analysis evaluates injection speed, pressure profile, holding pressure, melt temperature, mold temperature, clamp force, screw recovery, cushion, cycle stability, and machine capability relative to part demand. A process may appear stable on paper while still operating too close to the edge of its safe window.

What Data Makes Injection Molding Technical Analysis Reliable

Not all analysis is equally useful. For information researchers and sourcing professionals, one practical question is how to tell whether a supplier’s technical analysis is credible. The answer depends on data depth, cross-functional interpretation, and whether findings lead to repeatable control actions.

Reliable technical analysis often includes first-article dimensional studies, cavity pressure data, fill time consistency, machine parameter history, resin drying logs, mold maintenance records, reject pattern analysis, and sometimes mold flow simulation. A mature supplier can explain how these data points connect rather than presenting them as isolated documents.

Trend data is particularly important. A one-time acceptable sample says little about long-term control. But stable measurements across multiple runs, cavities, shifts, and material lots say much more about process robustness. Technical analysis becomes meaningful when it reveals not just current quality, but future predictability.

Another useful indicator is correlation. For example, if warpage increases when mold temperature drifts, or flash rises after tool wear reaches a certain level, the supplier should be able to show that relationship. Good analysis is evidence-based, not anecdotal.

What Researchers and Sourcing Teams Should Look For in a Supplier Review

Target readers in the research stage are often trying to judge manufacturing competence without directly running the process themselves. In that situation, the most valuable questions are practical ones.

First, ask how the supplier identifies root causes when defects occur. Do they use structured methods such as parameter studies, cavity-by-cavity comparison, simulation review, and corrective action verification? Or do they rely mainly on operator experience and trial-and-error adjustments?

Second, ask whether they can distinguish between product design limits and process execution issues. A strong molder should be able to say when a defect is best solved by tool modification, part redesign, resin change, or setting optimization.

Third, review their process window philosophy. Can they produce parts consistently within a reasonable operating range, or only under narrowly tuned conditions? A wide and validated process window usually indicates stronger manufacturability and lower supply risk.

Fourth, assess maintenance and monitoring discipline. Mold wear, vent contamination, cooling blockage, and resin handling lapses are common sources of gradual quality drift. Technical analysis is most effective when paired with preventive control systems.

Finally, look for whether the supplier translates analysis into preventive action. Catching a problem is valuable. Preventing recurrence is more valuable. The best partners use technical analysis not just for troubleshooting, but for process development, design feedback, and continuous improvement.

Why Early Diagnosis Has Direct Business Value

From a business perspective, early technical diagnosis protects more than scrap cost. It reduces launch delays, repeated mold modifications, production interruptions, sorting labor, customer returns, and warranty exposure. It also shortens the path from tooling trial to stable mass production.

This is especially important in industries where molded parts support larger assemblies. A small dimensional shift in one plastic component can stop downstream automation, create sealing failures, or increase final assembly variation. In such cases, injection molding technical analysis is not just a quality tool. It is a supply-chain risk management tool.

For distributors, OEM sourcing teams, and market researchers, technical analysis also helps compare suppliers more intelligently. Two vendors may quote similar prices, but the one with stronger analytical capability often delivers lower total cost over the life of the program because fewer hidden failures emerge later.

Final Takeaway: Technical Analysis Reveals Whether a Molding Process Is Truly Under Control

Injection molding problems such as warpage, sink marks, flash, short shots, burn marks, weld lines, and dimensional instability are rarely isolated events. They are symptoms of how well part design, material behavior, mold construction, and machine settings work together. That is why injection molding technical analysis matters: it exposes hidden weaknesses before they become expensive production problems.

For information researchers, the real value lies in using technical analysis as a lens for judging manufacturing maturity. A capable supplier does more than detect visible defects. They can explain failure mechanisms, support conclusions with process data, connect root causes across the full molding system, and implement preventive corrections that improve repeatability.

In short, early diagnosis matters because it turns uncertainty into evidence. And in injection molding, evidence is what separates acceptable samples from reliable production.
