What technical analysis of cutting tools reveals first

For technical evaluators, the technical analysis of cutting tools reveals far more than edge geometry or coating choice—it exposes machining stability, tool life, material compatibility, and overall process efficiency. In high-precision manufacturing, these insights help identify performance risks early, compare tooling options objectively, and support smarter decisions across production planning, quality control, and cost optimization.

In practical B2B settings, that analysis is rarely limited to a single cutter. It often determines whether an OEM can hold a tolerance of ±0.01 mm, whether a mold shop can reduce cycle interruptions by 15%–25%, and whether a distributor is recommending a tool family that truly matches the customer’s workpiece material, spindle capability, and batch volume.

For the technical audience served by GHTN, the technical analysis of cutting tools is therefore a decision framework. It connects physical tool behavior with procurement logic, maintenance planning, compliance expectations, and long-term manufacturing competitiveness across mechanical tooling, mold processing, and industrial component production.

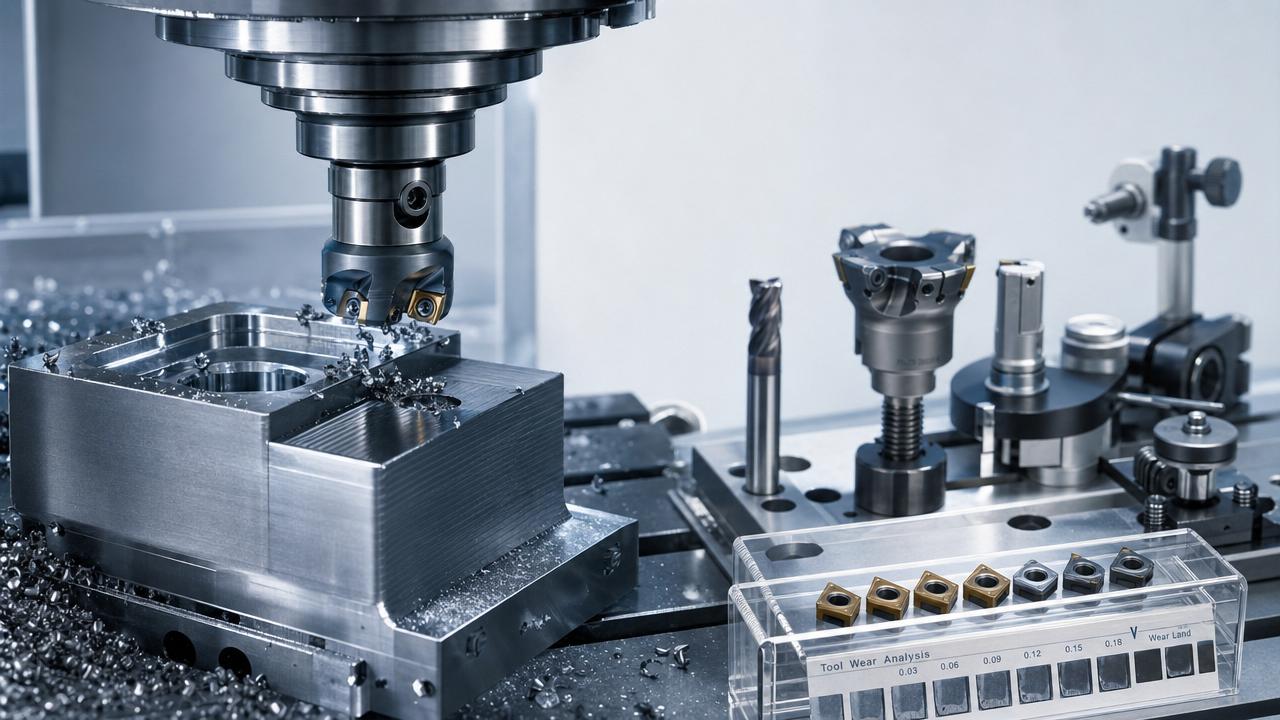

What Technical Analysis of Cutting Tools Identifies at the Earliest Stage

At the first review stage, evaluators usually look for 4 core signals: cutting stability, thermal behavior, wear pattern, and material fit. These factors emerge before large-volume production and can often be observed within the first 20–50 test parts or during a 30–90 minute trial run.

The reason this matters is simple. A tool that looks competitive on paper may still fail in real process conditions if chip evacuation is unstable, edge chipping appears early, or the coating reacts poorly to hardened steel, stainless steel, aluminum alloy, or abrasive composite materials.

Early indicators that matter most

• Spindle load fluctuation above 8%–12% during constant-feed cutting
• Tool edge micro-chipping visible after the first 10–30 components
• Surface roughness drifting beyond Ra 0.8–1.6 μm targets
• Chip color and shape suggesting poor heat control or unstable evacuation
• Vibration marks, burr formation, or corner breakdown at entry and exit points

Why geometry is only the starting point

Rake angle, helix angle, relief angle, and nose radius remain essential, but geometry alone does not predict performance. Technical analysis of cutting tools must also check substrate toughness, coating thickness, edge preparation, and the interaction between tool holder runout and machine rigidity.

For example, a fine-edge tool may deliver cleaner cuts in soft aluminum, yet the same edge can degrade too quickly in interrupted cutting on cast iron. In contrast, a honed edge may survive longer in demanding mold work, though it may increase cutting force by 5%–10%.

A practical screening matrix for technical evaluators

Before deeper validation begins, many evaluation teams use a simple matrix to compare candidate tools against process realities. This keeps the technical analysis of cutting tools consistent across different plants, operators, and purchasing cycles.

The key takeaway is that technical analysis should begin with system fit, not catalog claims. A tool that aligns with the machine, material, and throughput target often outperforms a higher-priced option chosen only for coating reputation or nominal cutting speed.

How Tool Analysis Reveals Process Stability and Cost Risk

Once initial compatibility is confirmed, the technical analysis of cutting tools starts revealing hidden process risk. This is where evaluators move from specification review to production impact: scrap rate, tool change frequency, spindle downtime, and quality consistency over 100, 500, or 5,000 parts.

In many industrial environments, the most expensive tool is not the one with the highest unit price. It is the one that causes line interruption, secondary finishing, fixture rechecking, or frequent operator intervention. Even a 3-minute unplanned stop repeated 8 times per shift can significantly affect output.

Wear pattern tells a process story

Wear should be analyzed by pattern, not just by severity. Flank wear suggests progressive abrasion. Crater wear often points to excessive temperature. Edge chipping may indicate shock load, poor clamping, or insufficient substrate toughness. Built-up edge usually appears when cutting parameters and workpiece behavior are mismatched.

For technical evaluators in mold manufacturing and precision component machining, these distinctions matter because each wear mode leads to a different corrective action. Reducing cutting speed by 10% may help one case, while improving coolant targeting or increasing holder rigidity may solve another.

Typical interpretation of tool behavior

The following reference table helps technical teams translate tool behavior into likely causes and response priorities. It is especially useful in supplier comparison, process debugging, and new-line ramp-up planning.

This kind of structured reading turns the technical analysis of cutting tools into an operational decision tool. It helps teams separate controllable process variables from true tool limitations, which improves both supplier discussions and internal root-cause analysis.

Cost per part is a better metric than tool unit price

A tool priced 20% higher may still be the lower-cost option if it extends usable life from 120 parts to 180 parts, reduces polishing time by 30 seconds per component, or avoids one manual offset correction every 2 hours. Evaluators should compare total process economics, not invoice price alone.

This is especially relevant for multi-cavity mold work, automotive hardware production, and electrical component machining, where stable repetition often matters more than peak cutting speed. In those settings, predictability can be worth more than marginal performance gains under ideal conditions.

Selection Criteria Technical Evaluators Should Use Across Suppliers and Applications

When comparing suppliers, the technical analysis of cutting tools should be standardized into a repeatable process. Without a common evaluation structure, teams often compare unlike data: one supplier provides dry-cutting results, another provides flood-coolant data, and a third reports tool life under a different workpiece hardness range.

A reliable evaluation framework usually contains 5 layers: application definition, parameter alignment, trial design, wear inspection, and commercial review. This approach supports OEMs, contract manufacturers, and distributors that must justify technical decisions to both engineering and purchasing functions.

Five-step evaluation workflow

1. Define the application by material grade, hardness, tolerance, and target finish.
2. Match tool type to machine capability, holder standard, and coolant method.
3. Run a controlled trial with fixed spindle speed, feed, depth of cut, and batch size.
4. Inspect wear, dimensional drift, burr level, and surface result after set intervals.
5. Compare cost per part, replacement frequency, and supply continuity for 3–6 months.

Questions evaluators should ask suppliers

• What material range was used to validate the proposed cutter?
• Was testing performed in roughing, semi-finishing, or finishing conditions?
• What runout tolerance and holder system were used in the reported data?
• How does performance change under dry machining versus coolant-assisted machining?
• What is the normal replenishment cycle: 7–10 days, 2–3 weeks, or longer?

Procurement and technical factors should be reviewed together

In industrial supply chains, technical suitability is only one side of the decision. The other side includes lot consistency, delivery stability, traceable manufacturing quality, and after-sales responsiveness. A technically strong tool loses value if replacement lead time regularly exceeds the production buffer window.

For that reason, many evaluators score tools using both engineering and supply metrics. A balanced review improves resilience, especially for export-oriented manufacturers that must meet strict delivery dates and maintain repeatability across multiple customer programs.

How to Apply the Analysis in Mold, Hardware, and Precision Component Production

The technical analysis of cutting tools becomes most valuable when applied to actual production scenarios. In the broader industrial parts sector, different applications create different priorities. Mold cavities prioritize surface integrity and dimensional precision, while hardware mass production may focus more on cycle time and predictable tool replacement intervals.

GHTN’s cross-sector perspective is relevant here because tooling decisions often affect more than one department. A poor cutter choice can influence machining, downstream assembly, quality inspection, and even export packaging schedules if defects trigger rework or delayed release.

Application-specific priorities

Technical evaluators can improve decision quality by separating application goals clearly. The same end mill or insert family may behave very differently in hardened mold steel at 48–52 HRC than in aluminum housings or stainless fastener tooling. The table below highlights common priorities by application type.

The main conclusion is that tool analysis should be application-led. A technically sound choice in one scenario may be inefficient in another. Evaluators who map tool behavior to actual process priorities make faster and safer sourcing decisions.

Common mistakes that distort evaluation results

• Testing multiple tools with different holders or runout conditions
• Changing feed and speed during comparison without proper documentation
• Judging performance after too few parts, such as fewer than 10 samples
• Ignoring coolant concentration, nozzle direction, or chip evacuation behavior
• Focusing on catalog life claims instead of in-house process data

Documentation improves repeatability

A structured record should include machine model, holder type, measured runout, workpiece batch, hardness range, cutting parameters, wear photos, and part-quality results at defined intervals such as every 25 or 50 pieces. This allows future revalidation and cleaner supplier communication.

For technical teams managing multi-site production or export manufacturing programs, this documentation also supports faster issue escalation, better training, and more reliable cost modeling over 1 quarter to 2 years of production planning.

What Technical Evaluators Should Do Next

The technical analysis of cutting tools reveals first whether a cutter can function as a stable production asset rather than a short-term test success. It clarifies how geometry, substrate, coating, machine condition, and application environment interact in real manufacturing conditions.

For technical evaluators working across hardware, mold, electrical, and precision component sectors, the most effective approach is to combine early-stage screening, controlled trial data, wear interpretation, and supply-side review. That combination improves process reliability, controls cost per part, and reduces sourcing risk.

GHTN supports this kind of industrial decision-making by connecting technical depth with market insight across the core layers of manufacturing. If you are reviewing tool options, benchmarking suppliers, or refining your production evaluation method, contact us to explore tailored analysis, discuss tooling details, or learn more solutions for precision manufacturing and industrial parts sourcing.
